Outdoor equipment

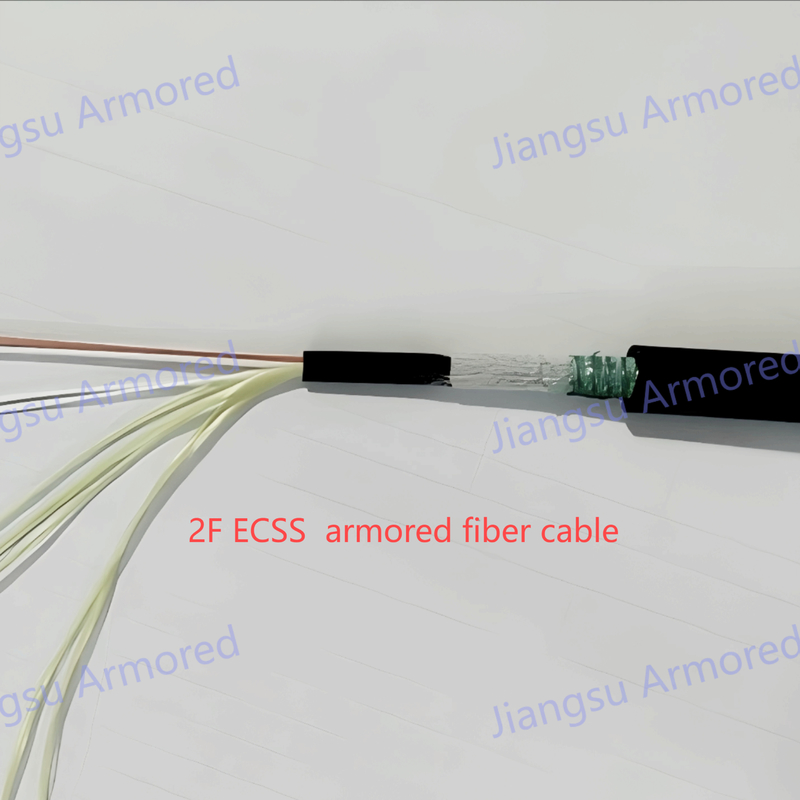

Corrugated steel armored fiber cables are suitable for outdoor use, because armored fiber cables are wear-resisting, and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.

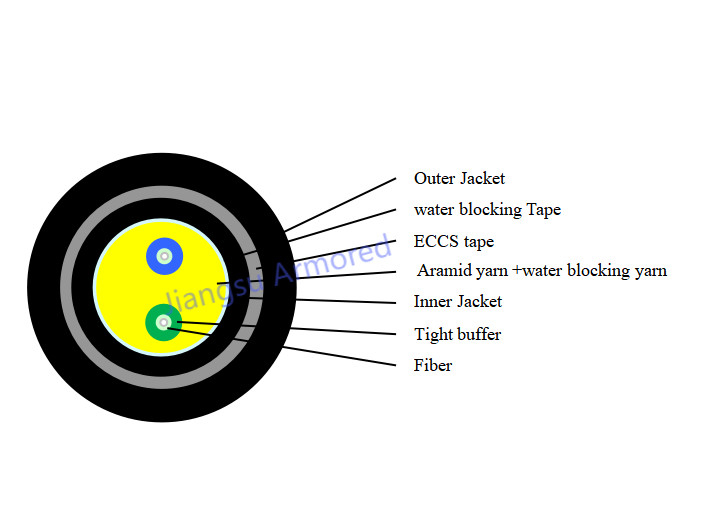

Items |
Specifications |
|
Fiber Count |
2 |
|
Tight-buffered Fiber |
Dimension |
0.9mm±0.05mm |
|
|
Material |
PVC |
|
|
Color |
Blue, Orange, |
Inner Jacket |
Dimension |
3.8 mm±0.1mm |
|
|
Material |
LSZH |
|
|
Color |
Black |
Outer Jacket |
Dimension |
8.2mm±0.3mm |
|
|
Material |
HDPE |
|
|
Color |
Black |
Items |
Unit |
Specifications |
Tension(Long Term) |
N |
500 |
Tension(Short Term) |
N |
800 |
Crush(Long Term) |
N/10cm |
300 |
Crush(Short Term) |
N/10cm |
1000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-40～+70 |
Operating Temperature |
℃ |
-40～+70 |
Storage Temperature |
℃ |
-40～+70 |
