Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket  Micro

Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket Micro

  • Highlight

    Spiral armored fiber patch cable

    ,

    armored fiber patch cable 3.0mm

    ,

    armoured fiber patch cord

  • Name
    2 Cores Armored Patch Cord
  • Material
    PVC
  • Fiber Mode
    SM G657A2
  • Cable Diameter
    3mm
  • Connector
    SC/APC And FC/UPC
  • Color
    Grey
  • Cable Length
    3M
  • Application
    FTTH, ODN
  • Flame Rating
    IEC60332-1-2, OFCR, Or OFCP
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    2F-A2-3.0-PVC-SC/A-FC/U-3M
  • Minimum Order Quantity
    1000M Cable
  • Price
    To Be Advised
  • Packaging Details
    Plastic bags , Carton, and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Supply Ability
    4000pcs Connector Per Da4

Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket Micro

Duplex Spiral Armored Patch Cord 3m 3.0mm Grey PVC Jacket Micro Armored Patch Jumper

2F Armored Patch Cord 3m 3.0mm Grey PVC Jacket Flame Resistant SC/APC and FC/UPC Connector

ODN use, FTTH, FTTR. Micro Armored Patch Jumper, Duplex Spiral Armoured Patch Cord



Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc..

With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, the advantage are particularly obvious.



Item Armored patch cord
Fiber G657A
Cable diameter 3.0MM
Cable jacket PVC
Length 3M
Insert loss < 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC),
Temperature PVC: -20℃~70℃, LSZH: -40℃~80℃
Fan-out cable Legnth: 0.3m-0.5m,OD3.0mm diameter

Cable Grade



IEC60332-1-2, OFCR, OFCP, etc.

Comply with ROHS

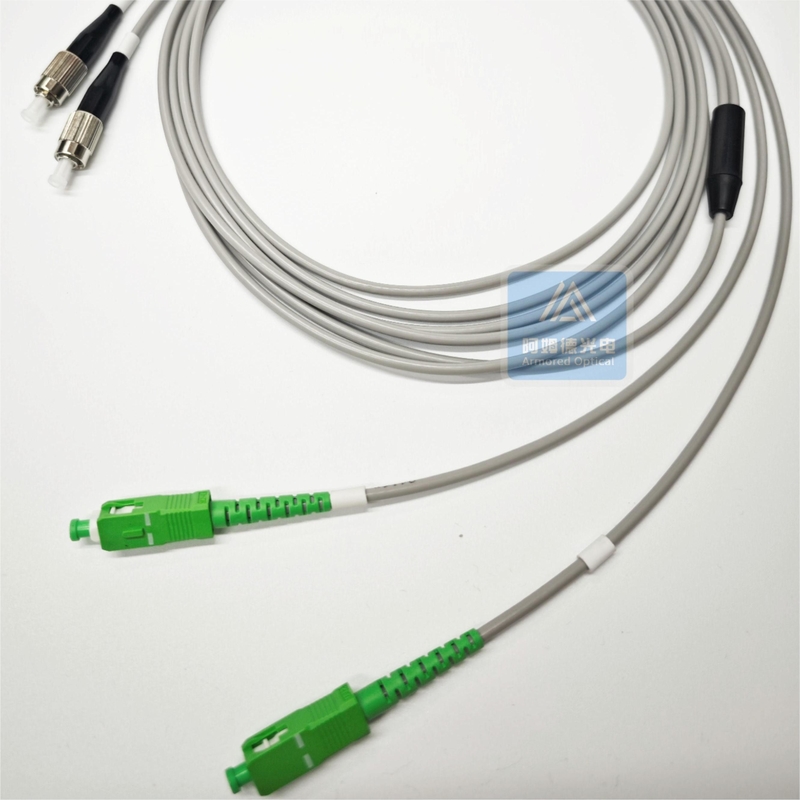

Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket  Micro 0

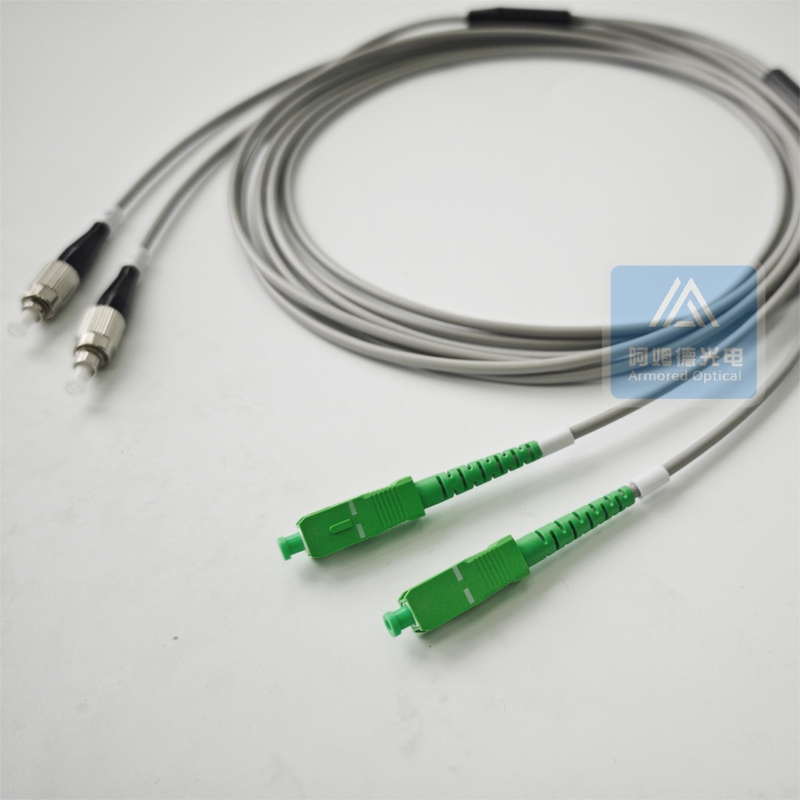

Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket  Micro 1

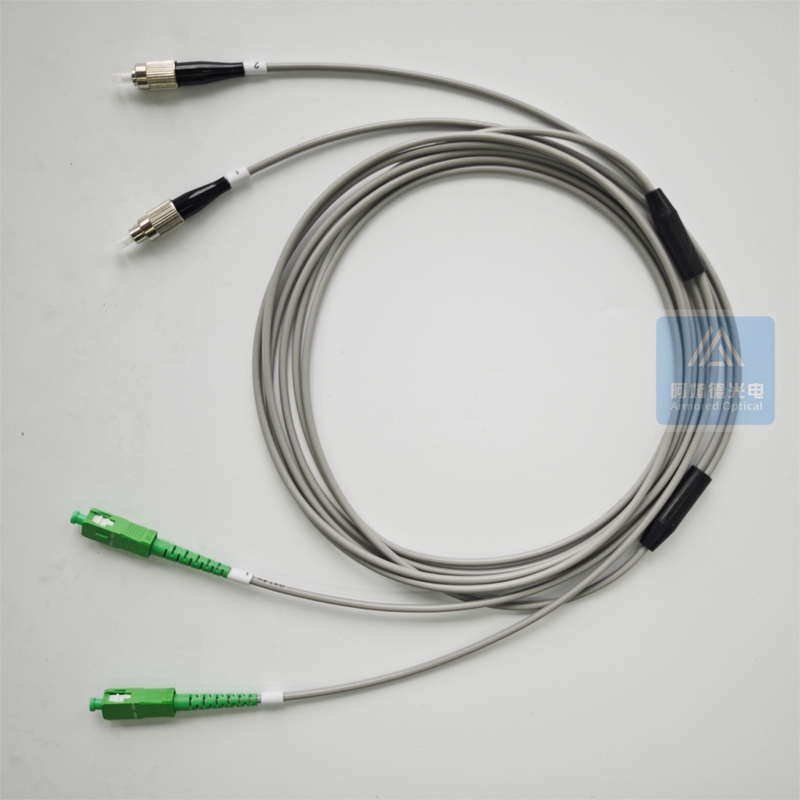

Spiral Armored Fiber Patch Cable Cord 3m 3.0mm Grey PVC Jacket  Micro 2



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • The spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.

Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
