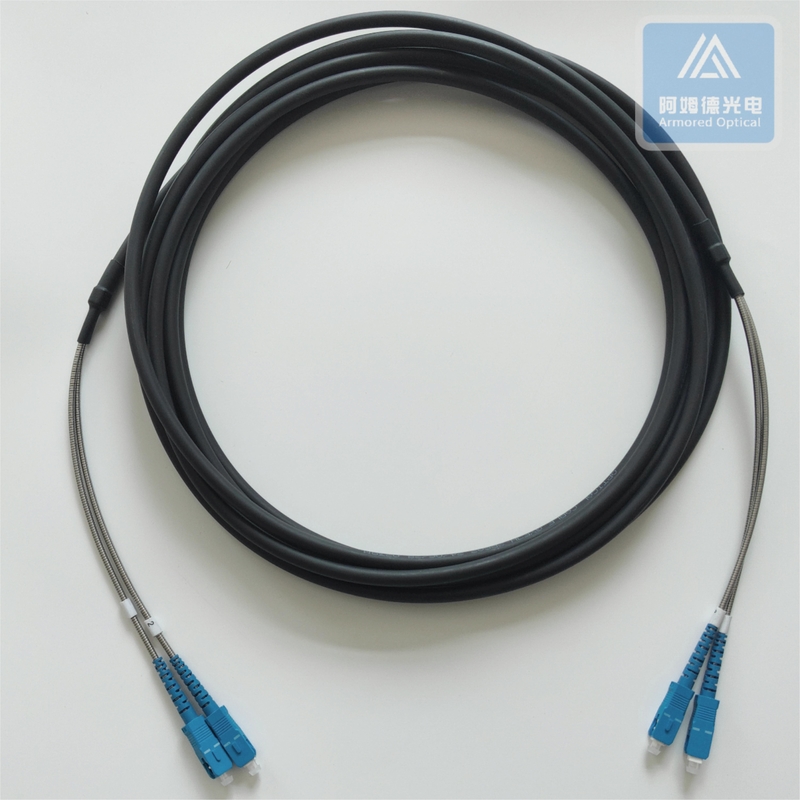

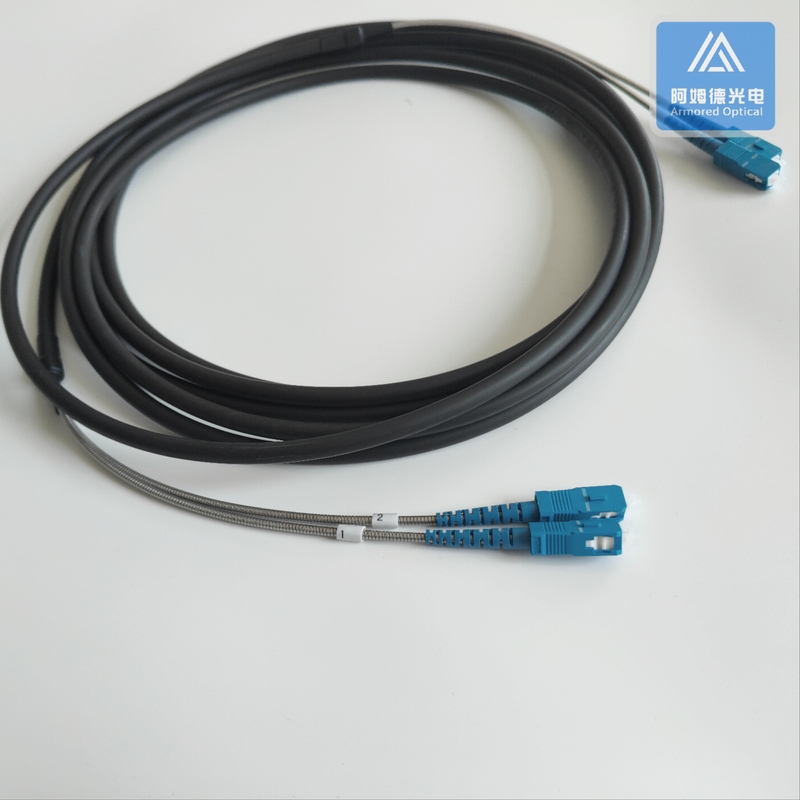

2 Cores SM Armored FTTA Patch Cord CPRI Patch Cord 7.0mm Black LSZH Fullaxs and SC,
CPRI Patch Jumper, Armored FTTA Cable Assembly, Base Station Fiber Assembly.
Parameter
| Item | 2 Cores Armored CPRI Patch Cord |
| Fiber | G657A |
| Cable Diameter | 7.0 mm (6.0mm or 5.0mm are available) |
| Cable Jacket | Black LSZH |
| Length | 10M, 30M, 50M, 70M,.etc. |
| Insert Loss | ＜ 0.30dB |
| Return Loss | ≥50dB (UPC) |
| Temperature | -40℃~80℃ |
| Fan-out Cable | SC-30CM, or customized. |
|
Cable Grade
|
IEC60332-1-2, Comply with ROHS |
DLC fan-out length 30cm. (the fan-out length is according to customers' requirement, they're customized. )
Compare with common patch cord, armored patch cords have several advantages as following,
Physical durability
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.
Versatility
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.
Flexibility
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Our products are sold all over the world, you can rest assured.
